The ultimate 555 dc motor controller with single layer(DIY flexible) PCB

Project type: PCB project

Platform: Easy EDA

Features:

• Can change the duty cycle and frequency independently.
• The PCB can handle up to 6 amps of current in ideal conditions.
•  Low cost Single layer PCB.
• Can be printed with DIY techniques like toner transfer easily.
• Integrated 5v regulator to supply your 5V microcontrollers and other 5V peripherals

Design rules

    Default

• Trace width: 30 mil or 0.762 mm
• Clearance: 30 mil or 0.762 mm

    Power

• Trace width: 50 mil or 1.27 mm
• Clearance: 30 mil or 0.762 mm

Schematic Diagram:

PCB View (full color all layers):

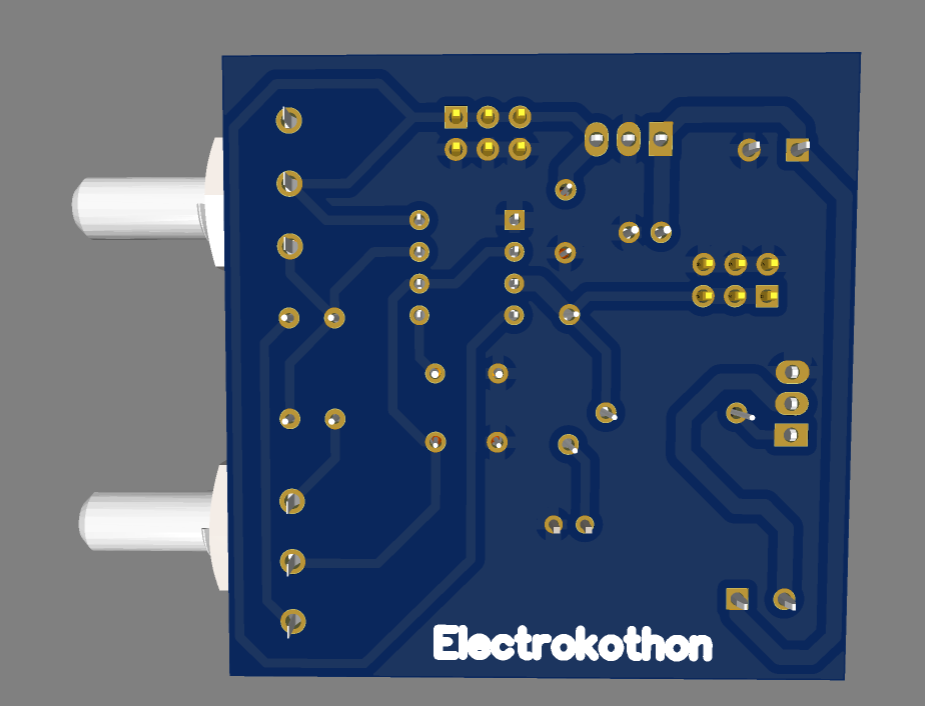

3D previews:
